At Eco Solar Energy, we offer cutting-edge electric vehicle (EV) charging solutions designed to maximize energy efficiency and integrate seamlessly with solar energy systems. Our Zappi EV chargers deliver smart, flexible charging options, allowing homeowners to charge their vehicles using surplus energy generated from solar or wind systems, ensuring significant energy savings and environmental benefits.

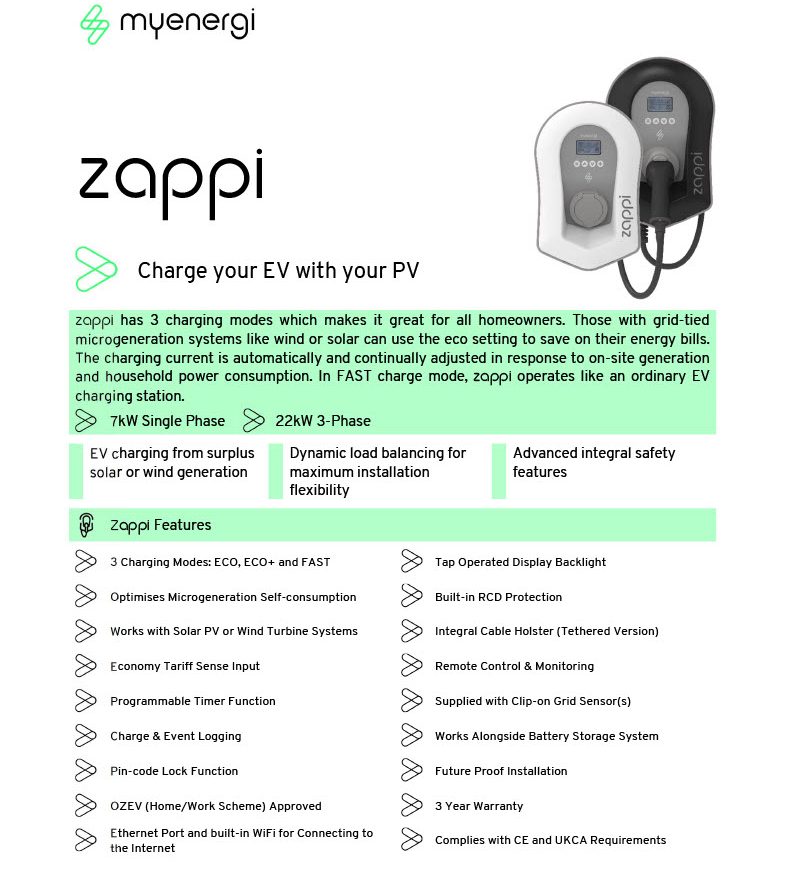

Zappi EV Charger

Models: 7kW Single Phase / 22kW 3-Phase

The Zappi EV charger is an intelligent charging station that optimizes the use of renewable energy for EV charging. With its multiple charging modes and advanced energy management features, it allows users to charge their EVs from their own solar or wind energy systems, making it an ideal solution for environmentally conscious homeowners. Zappi operates as a standard charger in FAST mode but can dynamically adjust the charging rate to align with household power consumption and microgeneration in ECO and ECO+ modes.

Key Features:

• Charging Power:
  • 7kW (Single Phase) or 22kW (3-Phase)
• Optimizes Renewable Energy: EV charging from surplus solar or wind generation, maximizing self-consumption.
• Dynamic Load Balancing: Automatically adjusts the charging current based on the energy available and household load.
• Three Charging Modes:
  • ECO: Adjusts charge power to match on-site energy generation and household consumption.
  • ECO+: Pauses charging when there is excessive grid power use, resuming only when surplus energy is available.
  • FAST: Charges the vehicle at maximum power, like a conventional charging point.
• Built-In RCD Protection: Integral safety feature for protection against electrical faults.
• Works with Solar PV or Wind Turbine Systems: Designed to work seamlessly with grid-tied microgeneration setups.
• Remote Control & Monitoring: Compatible with mobile apps for tracking and controlling the charging process.
• Economy Tariff Sense: Allows for optimized charging during off-peak electricity tariff hours.
• Pin-Code Lock: Security feature to prevent unauthorized charging.
• Supplied with Grid Sensors: Clip-on sensors for monitoring power usage and generation.
• 3-Year Warranty: Backed by a comprehensive warranty for peace of mind.

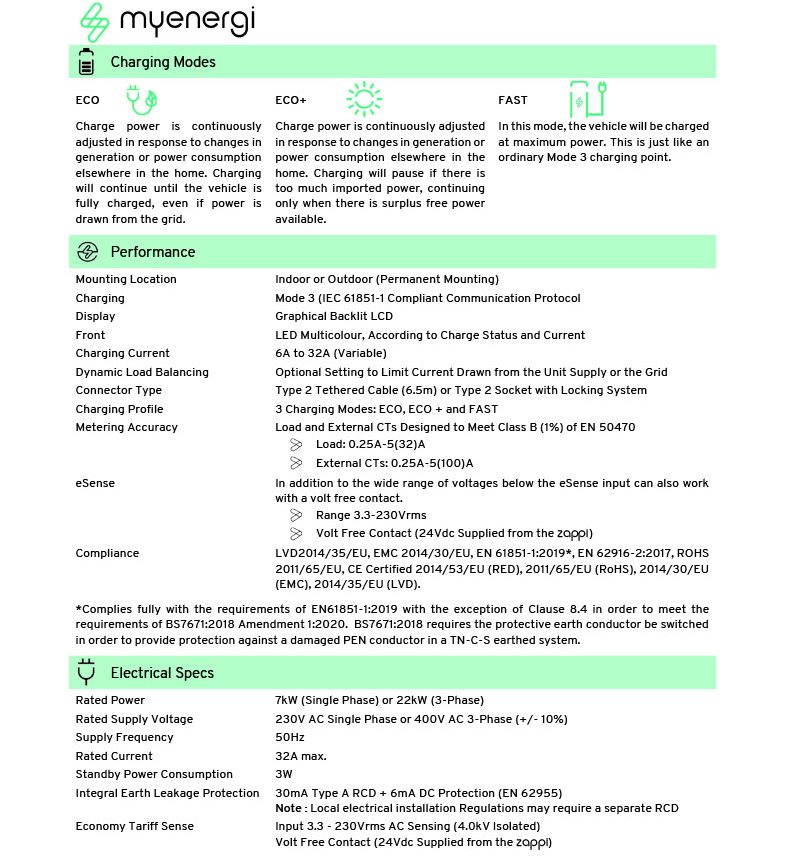

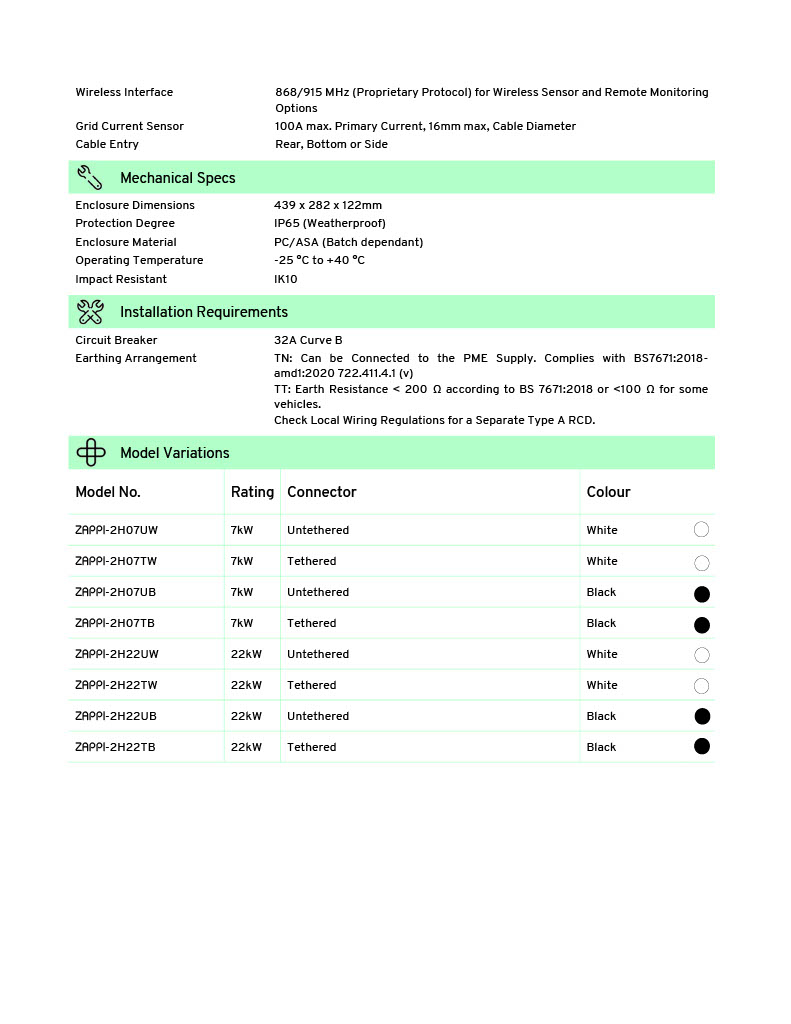

Technical Specifications:

• Rated Voltage: 230V AC Single Phase or 400V AC 3-Phase (+/- 10%)
• Charging Current: 6A to 32A (Variable)
• Dynamic Load Balancing: Optional setting to limit the current drawn from the grid.
• Connector Type: Type 2 tethered cable (6.5m) or Type 2 socket with locking mechanism.
• Protection: 30mA Type A RCD + 6mA DC protection, compliant with EN 62955 standards.
• Wireless Interface: 868/915 MHz for sensor and remote monitoring.
• Enclosure Dimensions: 439 x 282 x 122mm
• Protection Rating: IP65 (weatherproof for outdoor installation).
• Operating Temperature: -25°C to +40°C
• Impact Resistance: IK10 for enhanced durability.
• Compliance: CE, UKCA, ROHS, LVD, and EMC compliant for safety and reliability.

Additional Features:

• Future-Proof Installation: Zappi is designed to evolve with emerging technologies and changing energy needs.
• OZEV Approved: Eligible for government grants under the Home and Workplace EV charging schemes.
• Supports Battery Storage Systems: Works alongside existing battery storage systems for maximum energy efficiency.
• Programmable Timer Function: Set charging schedules to optimize for off-peak tariffs or specific charging windows.

The Zappi EV charger provides a smart and sustainable solution for homeowners seeking to charge their electric vehicles efficiently. Whether you’re using surplus energy from your solar panels or wind turbine or just need a standard charging solution, Zappi delivers a future-ready, flexible charging experience.
